Heat Resistant SS 310 Refractory Anchors V Shape Cement Industry
There are two kinds of materials of Refractory Anchors , metal and ceramic. Metal anchors are made of low-carbon steel, heat-resistant alloy steel, nickel-chromium alloy and other materials, and their materials are compatible with high service temperatures.
Refractory Anchors is made of refractory raw materials after molding and firing, and its material and maximum service temperature are shown in Table .
SS 310 Refractory Anchors Parameter
| Name |
Heat Resistant SS 310 Refractory Anchors V Shape Cement Industry |
| Melting Temperature |
1400degree -1450 degree |
| Application Temperature |
1000 °C |
| Tensile Strength |
558 MPa(N/mm2) |
| Density |
7.96(g/cm3) |
| Microstructure |
Austenite |
| Magnetism |
Non |
| Length |
Customized |
| Equivalent Diameter |
Customized |
All models can be corrugated or specially formed for superior holding power.
We can produce the anchors to suit stud welding techniques, hand welding
techniques, or the mechanical bolt-on technique of fastening to the vessel.
SS 310 Refractory Anchors Application:
Most of Refractory Anchors are used as fixtures for integral linings (linings of castables, plastics and injection materials). Refractory brick lining is also used, but not many occasions. Metal fixtures are usually used to support and fix thinner or heat-insulated integral linings, such as chimney linings, petrochemical catalytic cracking reactor linings (, integral spray gun liners for spray metallurgy, DH and RH vacuum degassing The overall lining of the immersion tube of the device, the lining of the rotary kiln discharge day and the feeding port, etc.
|
|

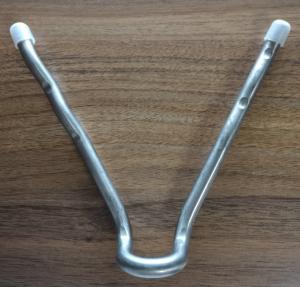

Heat Resistant SS 310 Refractory Anchors V Shape Cement Industry Images
|
